APEX Cable for Red Dragon 3 Speedy 150W & 230W / 10V Connection

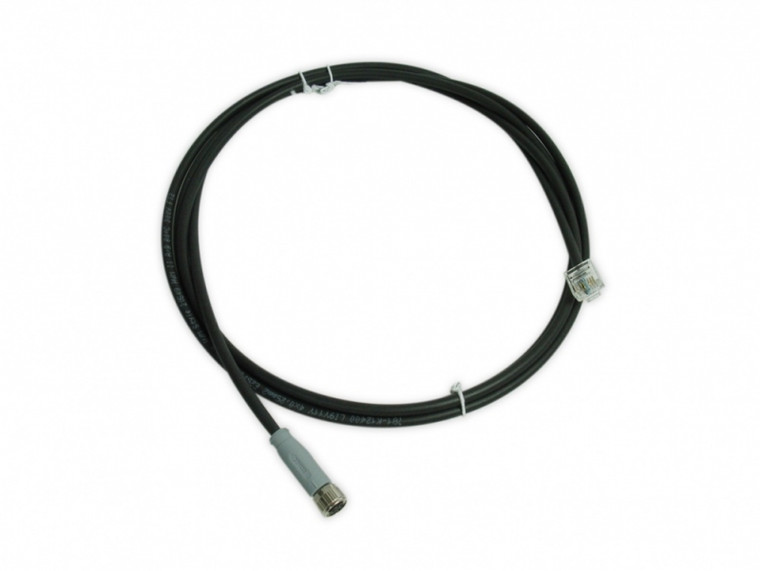

Connection Cable for Red Dragon^® 3 Speedy 150W and 230W pumpwith 10V connetion
to the Controller/Computer

Technical data connection cable for Red Dragon^® 3 Speedy pump :
for the connection of your Red Dragon^® 3 (150W & 230W) pump with 10V connection to your aquarien-computer/contoller

contents of delivery:

• 1x Connection-cable for Computer/Controller (approx. 2,0m)
  Please choose your model - APEX/ReefAi or GHL

  Operating_and_maintenance_manual.pdf

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

Use the RD3 pump as a circulation pump!

Watch, how it works! Link to the video.

This cable allows a connection to an aquarium computer (E.g. GHL) via a 0-10V interface.
Please choose your right connection-cable!

Tested so far folowing these two computers:
GHL ProfiLux 3.1 and from Neptune Systems the Apex Aqua Controller.

Compatible with following brands:

https://www.aquariumcomputer.com/
http://www.neptunesystems.com/
https://www.reefai.com/

//////////////////////////////////////////////////////////////////////////////

Functioning of the electronics:
Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.

If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. From ~ 0,8V starts the pump at the lowest level (20W) and run. At an increase of 0,5V will increase the level, also. So 1V = 20W ….. 9V = 230W.

At a higher input voltage remains the Speedycontroller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button.
