for aquariums/tanks up to 95 gallons (350 liter)

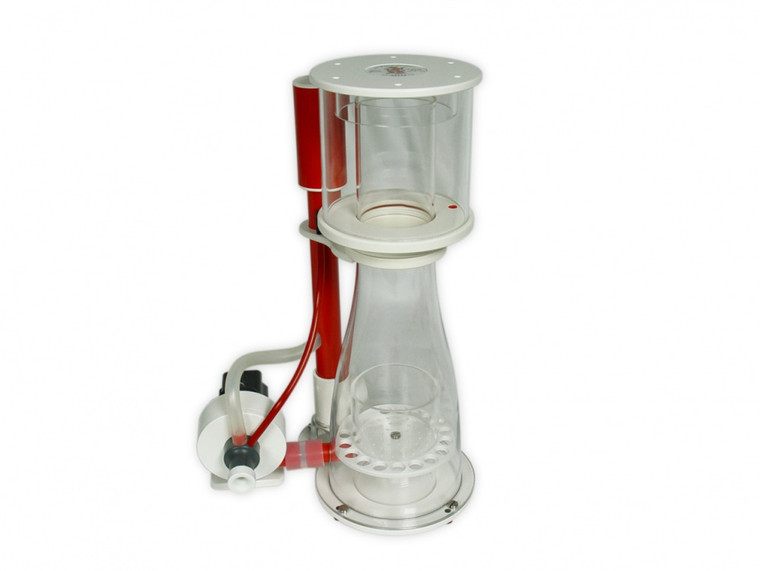

hard facts Bubble King®Double Cone 150:
165 gph Air - 211 gph Water = 1 pump Mini Red Dragon 600
Base plate: 7.67ʺ x 9.65ʺ / height ~ 19.69ʺ (19,5 cm x 24,5 cm / height ~ 50 cm)
Technical data Bubble King® Double Cone 150:
Skimmer-pump: Mini Red Dragon 600
Delivery rate: 165 gph Air inlet ~ 211 gph Water inlet (625 l/h Air inlet ~ 800 l/h Water inlet)
wattage - active power: P = 18 Watt/h
operating voltage: 110 Volt 60 Hz (also in 230V/50Hz available)
Protection class: IP 68
Water level: ~ 5.91ʺ up to ~ 7.87ʺ (~ 150 mm up to ~ 200 mm)
Weight skimmer: 5 kg inclusive pump
Dimension skimmer without pump:
7.67ʺ wide / 9.56ʺ length / ~ 19.69ʺ height
Dimension skimmer with pump (90 ° to torque tube):
8.66ʺ wide / 12.60ʺ length / ~ 19.69ʺ height
Dimension skimmer with pump (compared with torque tube):
8.66ʺ mm wide / 15.35ʺ length / ~ 19.69ʺ height
Heigth silicon outlet (cleanout) ~ 12.60ʺ
Dimension skimmer without pump:
195 mm wide / 245 mm length / ~ 500 mm height
Dimension skimmer with pump (90° to the torque tube):
220 mm wide / 245 mm length / ~ 500 mm height
Dimension skimmer with pump (compared the torque tube):
220 mm wide / 390 mm length / ~ 500 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
The skimmer has default 2 pump connection options.
