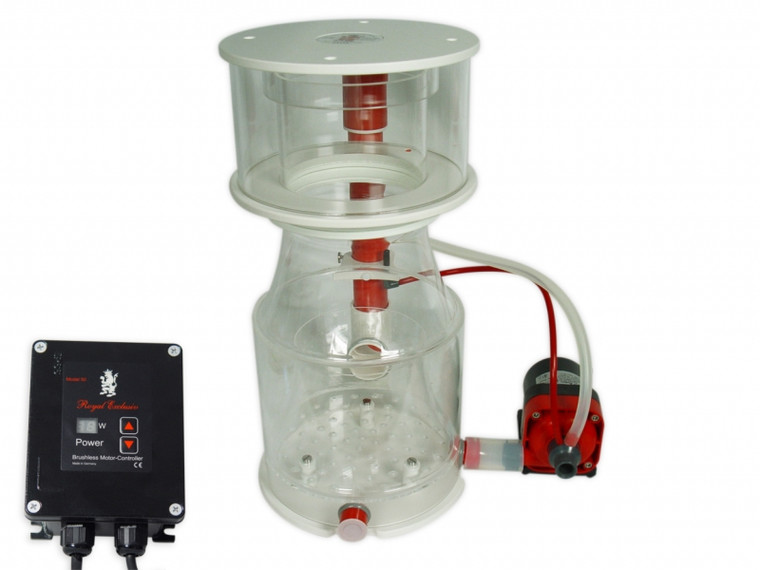

Bubble King Supermarin 250 + RD3 Speedy

for aquariums/tanks from 264 - 792 gallons (1.000 liter - 3.000 liter)

hard facts Bubble King^® Supermarin 250 RD3 internal:
adjustable Red Dragon^® 3  Mini Speedy pump 50 Watt 528 gph Air (2.000 l/h)
motor speed adjustable: 400-4000 1/min
Base plate: Ø 10.63ʺ / height ~ 22.05ʺ  (Ø 27 cm / height ~ 56 cm)

Technical data Bubble King^® Supermarin 250 RD3 internal:
528 gph Air - 1.056 gph Water = Red Dragon^® 3 Mini Speedy pump 50 Watt
max. 50 Watt/h, adjustable 15-50 Watt   //   speed adjustable Brushless DC pump
Delivery rate adjustable: max. ~ 528 gph (2.000 l/h) Air and max. ~ 1.056 gph (4.000 l/h) Water inlet
wattage - active power: P = min. 15 Watt/h  -  max. 50 Watt/h
operating voltage: 110 Volt 60 Hz  (also in 230V/50Hz available)
Protection class: IP 68

Water level: ~ 7.09ʺ up to ~ 9.06ʺ (ideal ~ 7.87ʺ)   (~ 180 mm up to ~ 230 mm)
Weight skimmer: 11 kg inclusiv pump

Dimension skimmer without pump:
13.39ʺ wide / 11.81ʺ length / ~ 22.05ʺ height
Dimension skimmer with master pump (90° to torque tube):
13.98ʺ wide / 18.50ʺ length / ~ 22.05ʺ height
Dimension skimmer with master pump (compared with torque tube):
21.65ʺ wide / 11.81ʺ length / ~ 22.05ʺ height
Height silicon outlet (cleanout) ~ 15.75ʺ

Dimension skimmer without pump:
330 mm wide / 290 mm length / ~ 560 mm height
Dimension skimmer with pump (90 ° to torque tube):
345 mm wide / 470 mm length / ~ 560 mm height
Dimension skimmer with pump (compared with torque tube):
520 mm wide / 300 mm length / ~ 560 mm height
