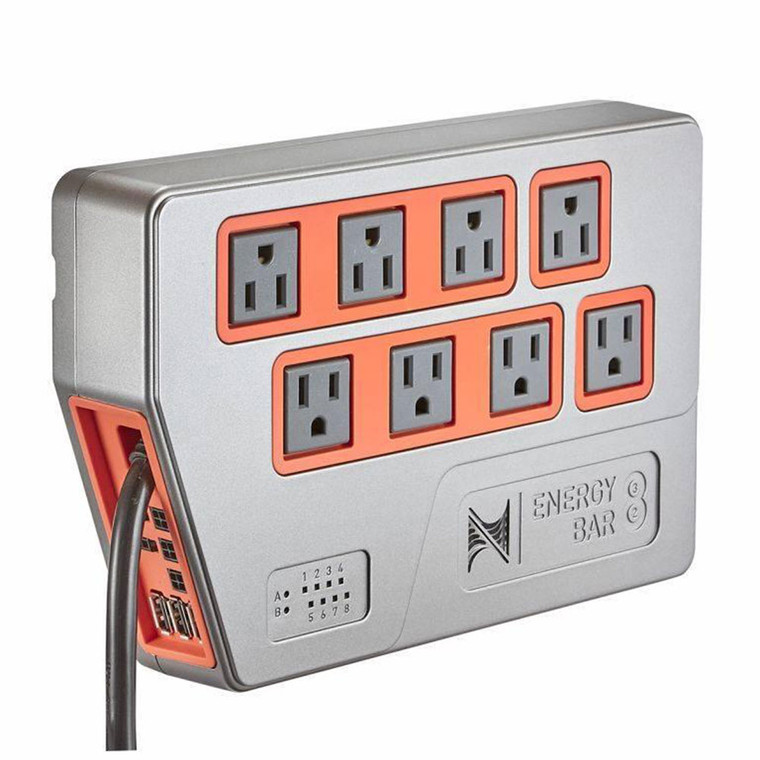

EB832 Energy Bar 832 - Neptune Systems

Energy Bar 832 - More Than Just a Powerstrip

• 8 Independently Controllable Outlets
• Individual Outlet Power Monitoring
• Two 24VDC Accessory Ports
• Three 1Link Ports
• Three AquaBus Ports

The Neptune Systems Energy Bar 832 (EB832) is designed as an ultimate power control hub for aquariums, featuring eight 120V AC outlets, an internal 100W 24VDC power supply, three built-in 1LINK ports, and two 24VDC accessory ports. It offers individual power monitoring, LED indicators for each outlet, and UL certification for safety. These features allow for the best monitoring and control, no matter where in the world you are.

Note: The Energy Bar 832 cannot be used as a standalone device and requires a Neptune Systems Apex Controller for operation. It is not compatible with the legacy, Apex Classic Controller systems.

Eight Independently Controlled Outlets

The completely redesigned Energy Bar 832 now has eight individual 7-amp relayed outlets letting you use any outlet for any device. Each outlet can also monitor and detect power usage in amps or watts, letting you set alarms and send emails when equipment has failed or is drawing an unusual amount of power. These notifications are crucial in allowing you to solve the issue before it becomes a bigger problem.

Three 1Link Ports

The built in 100W DC power supply lets you control up to 3 1Link accessories like the WAV circulation pumps, and DOS fluid metering system without the need of any additional power supplies or consuming additional outlets.

Two 24VDC Accessory Ports

Each Energy Bar 832 is equipped with two 24VDC accessory ports that can power accessories like the PMUP Utility Pump, SV-1 Solenoid Valve, GRO Refugium Light, or even DIY connections to other devices using the DC24 to Bare Wire Accessory.

Specifications

• Dimensions: 10" L x 6.5" H x 2.25" W
• Max Per Outlet Amperage: 7 Amps
• Max Total Amperage: 15 Amps

What's Included?

• Energy Bar 832
• 3ft AquaBus Cable
