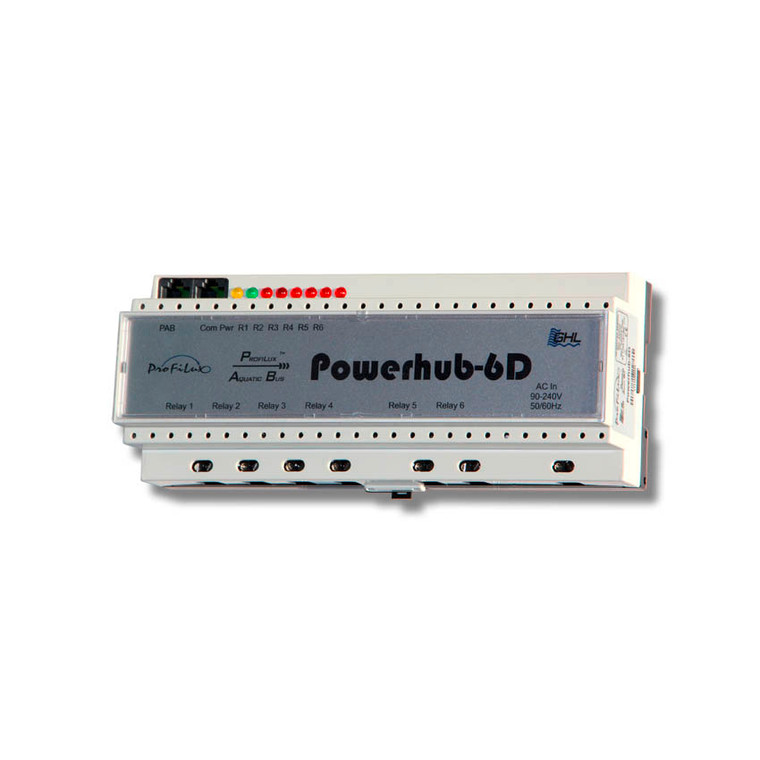

The digital switching module Power Hub–6D–PAB for ProfiLux 3 / 3.1 A / N / T (Ex) is addressed to professional users and primarily designed for use in control cabinets.
6 channels can be switched separately controlled via the ProfiLux Aquatic Bus (PAB) of ProfiLux 3 / 3.1 A / N / T (Ex).
The digital switching module powerhub–6D–PAB allows switching up to 6 circuits independently, all 6 channels are electrically isolated and switch up to 10 A / 240 VAC.
The device is designed for DIN rail mounting and offers screw terminals for the power supply (90 – 240 V, 50/60 Hz) and for relay connections.
Dimensions (LxWxH): 210 x 92 x 60 mm
